In February of 2025, Automotive Data Solutions (ADS) introduced the world to a new way of installing car radios. In their presentation, they discussed how aftermarket source unit installations evolved from under-dash to DIN and, subsequently, 2-DIN shapes. Their iDatalink Maestro APX kits, when combined with radios from JVC and Kenwood, usher in a new philosophy in radio upgrade options. Let’s check out the iDatalink Maestro APX installation kits.
The Basics of Radio Installations
Up until now, if you wanted to replace a factory-installed radio, you had a choice between DIN and 2-DIN radio chassis. An extension of these sizes includes floating-face radios with a large screen mounted on a bracket in front of the dashboard.
ADS spends significant resources cataloging vehicle information as it investigates each platform for remote car starter and vehicle interface solutions. The team noticed that many vehicles share common parts, such as screens. If a radio manufacturer could produce an aftermarket solution, ADS could provide simple installation and integration solutions to allow consumers to dramatically upgrade their cars and trucks in terms of features and performance.
ADS contacted their long-time partners at JVCKENWOOD to ask if they wanted to be the initial source unit partners for the APX Advanced Dash Integration product. ADS and JVCKENWOOD worked together on the initial Maestro RR radio data integration project. The two companies agreed, and work began several years ago on developing the APX kits and compatible radios. As a side note, JVC and Kenwood call their APX-compatible radio family Direct Replacement.
How Does Maestro APX Work?
In a conventional radio upgrade, a mobile enhancement retailer replaces the factory radio and often the trim panel with aftermarket solutions. The new dash kit has an opening for a single-DIN or, more commonly, a 2-DIN multimedia receiver. Some of these dash kits are complicated and expensive, and have to include new displays and interfaces for climate controls. Due to space limitations on the dashboard, many kits relocate the radio to a lower, less convenient location. Another drawback is that the radio display often shrinks from 8 inches to 7 inches or less. However, vehicle owners can now have state-of-the-art audio playback and smartphone integration, ready for connection to signal processors, amplifiers, and high-quality speakers.

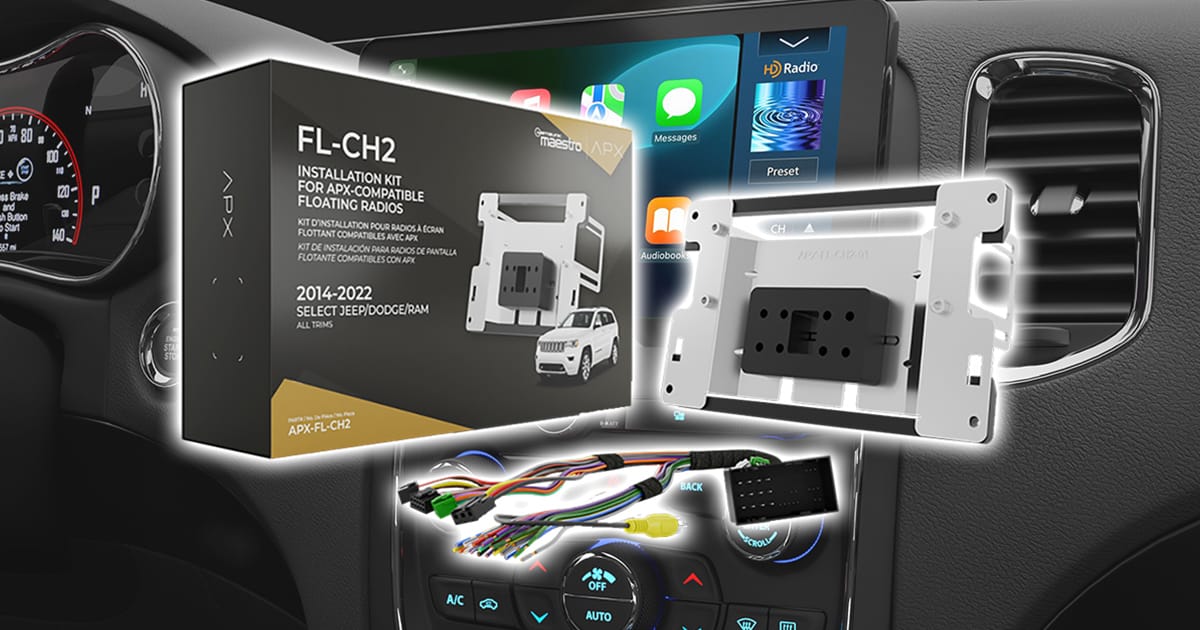

The Maestro APX kits include two components – mounting brackets for a screen and a T-harness. The harness handles connections to the factory wiring and to a Maestro RR or RR2 interface. The brackets allow the new screen included with the Kenwood or JVC radio to mount in or in front of the dash. In short, the new radio replaces the factory screen with a premium source unit.
Maestro Floating and Eight-Inch Kits
There are two types of APX kits – APX-FL for floating-face radios and APX-S8 for eight-inch display solutions.

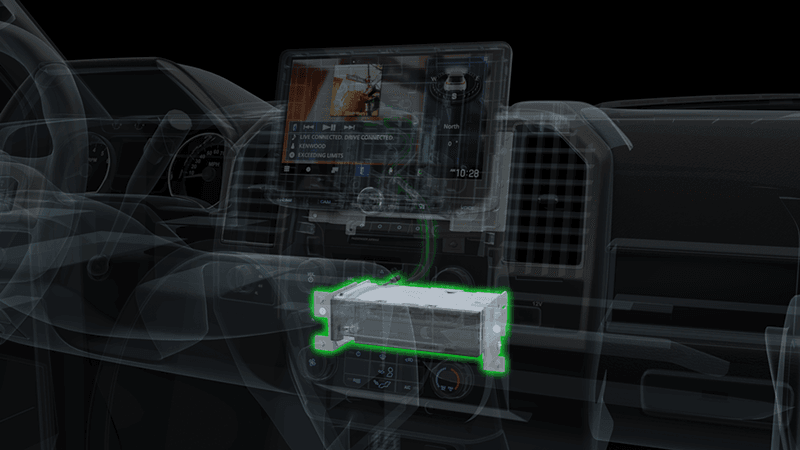

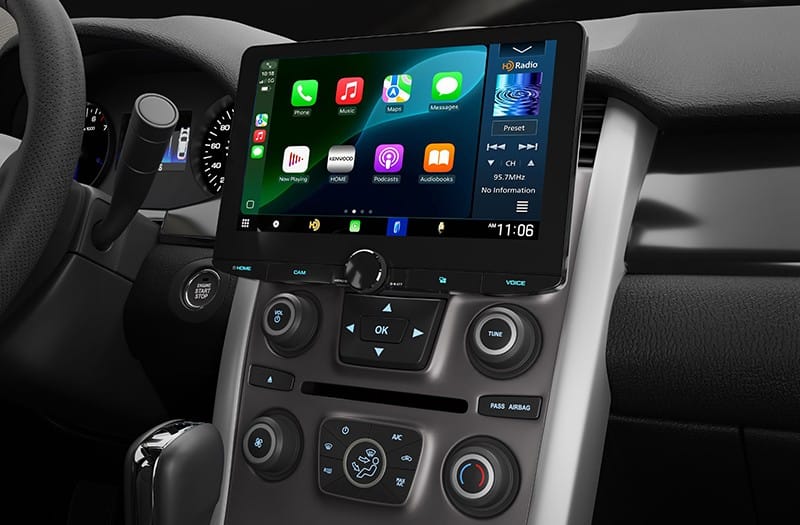

The APX-FL kit, like those for the Jeep Wrangler, allows a radio with a 10.1-inch floating face display to be integrated into the vehicle. Unlike DIN- and 2-DIN floating-face solutions, the radios compatible with the APX-FL kits are a true two-part solution. The radios are designed with a hide-away brain and a screen that attaches with a few harnesses. Depending on the kit, the radio brain may be installed in place of the factory CD mechanism or on the back of the display mounting bracket. Where possible, factory mounting brackets are used, but the Maestro kits include beautifully crafted brackets where needed. Spacer blocks and trim pieces are included so your installer can fit the screen up tight against the dash.

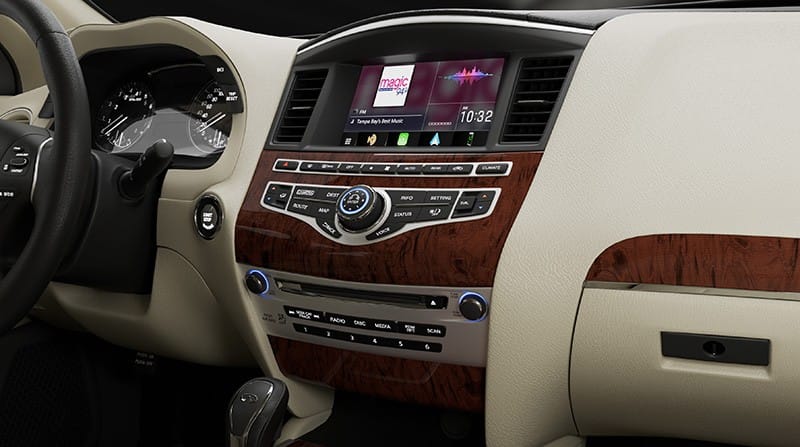

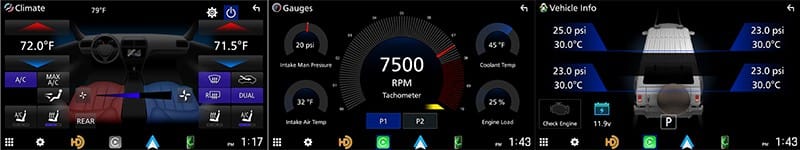

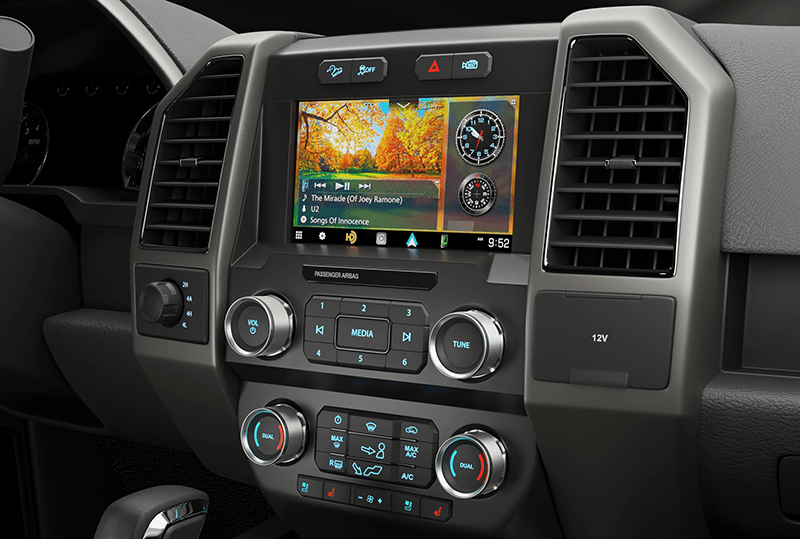

The APX-S8 kits are designed for a two-part radio solution that includes an eight-inch screen that replaces the factory screen. Brackets are provided as needed to ensure the new display fits perfectly into the dash. The result, once the upgrade is complete, is that the dash looks just like it did from the factory. All the radio and climate controls continue to function with the new radio, thanks to the Maestro RR or RR2 integration module. The same goes for the radio control buttons on the steering wheel.
APX Kit Applications
As of now, ADS offers kits for many Ford, GM, Chrysler, Jeep, Dodge, Ram, Holden, and Infiniti/Nissan vehicles. You can check the ADS Maestro website to see if there’s a Maestro APX radio upgrade solution for your application. A key benefit of the design is that new kits can be created in the future if a compatible platform emerges.
The ADS marketing team noted that there are almost five million vehicles on the road globally compatible with their Maestro APX kits, opening up new technology-upgrade opportunities for millions of vehicle owners. If you want to upgrade your car or truck, check the ADS Maestro website for a compatible Maestro APX kit, then choose a JVC or Kenwood radio that meets your needs. From there, an authorized dealer for the radio brand can bring your plan to fruition, and you can enjoy all the features of a modern vehicle in your older car, truck or SUV.
