The latest generation of Road Glide and Street Glide touring bikes from Harley-Davidson are now ready for a high-performance audio system upgrade thanks to Rockford Fosgate. We took a look at the Stage 2 and Stage 3 kits recently. Now it’s time for a deep dive into the HD24BL69 saddlebag speaker kits. Let’s check them out!
Features of the Rockford Fosgate HD24BL69
The Rockford Fosgate HD24BL69 is a cut-in speaker kit designed for 2024 and newer Road Glide and Street Glide bikes with the Skyline infotainment system and Harley-Davidson’s ABS saddlebags. You can check fitment for your bike using the compatibility chart on the product page.

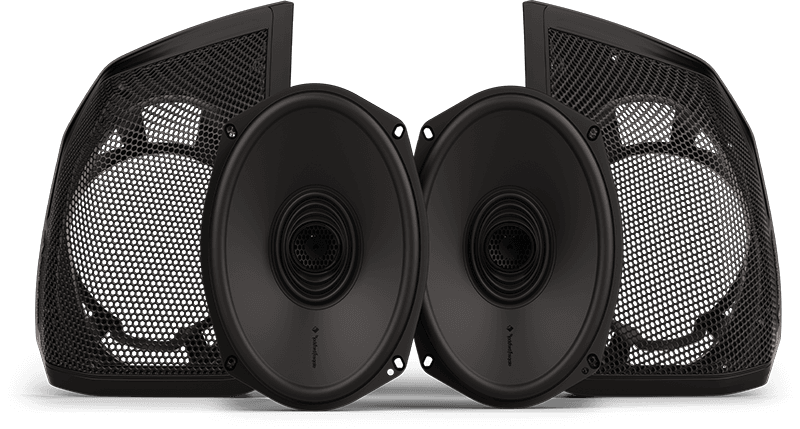

The kit includes a pair of the new TMS24-69 6×9-inch Element Ready speakers, a set of bag-lid grilles, the speaker bucket system, the lid cutting templates and a plug-and-play wire harness. The kits are compatible with the Power Lock Kit, so you can keep your gear safe.
How the HD24BL69 Kit Works

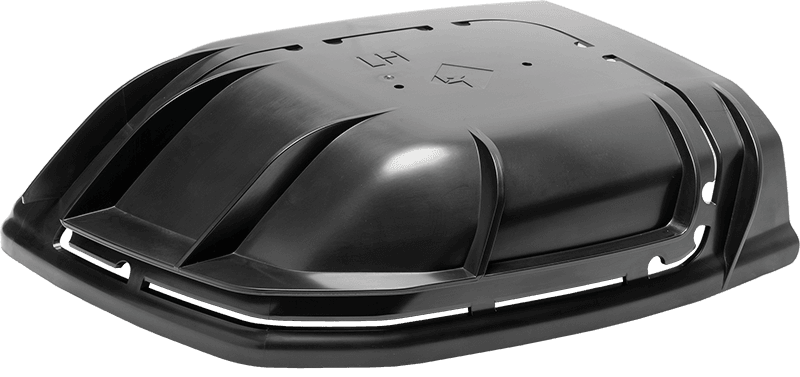

Here’s how the Rockford Fosgate HD24BL69 kit works. Your installer will remove the lids from the factory saddlebags, then protect them with masking tape. Next, the cutting templates included with the kit are put in place, and holes are drilled to serve as a pilot for a saw. Lastly, the bag-lids are cut to make room for the speaker upgrade.

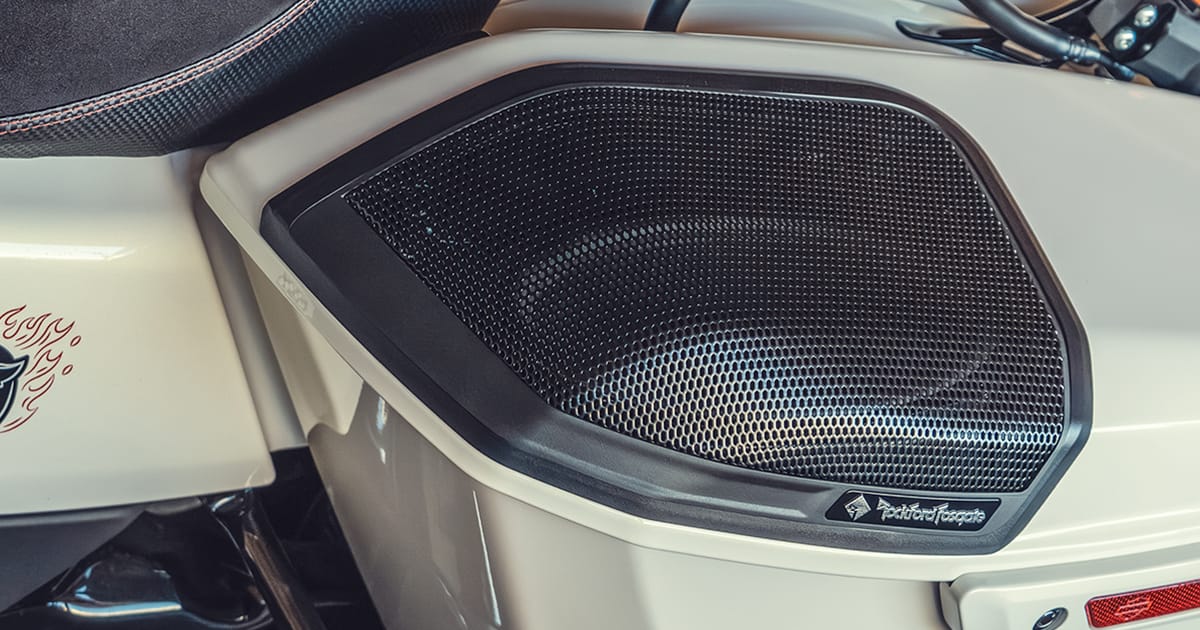

Once the lids are cut, the grille and basket assemblies are put in place. The new baskets mount from the top, providing room for a large speaker. They fasten to a self-centering backer ring for a watertight seal, and integrated O-rings help improve water resistance. Finally, with the speaker and wiring installed, a set of grilles shaped to match the bag geometry fit in place, and the Rockford Fosgate badge on the outside shows you are serious about your music.
Exploring the new TMS24-69 Speakers
While every component in the kit is vital to performance, the heart of the upgrade is the new TMS24-69 speakers. These new speakers take everything you love about Rockford Fosgate motorcycle audio and take things up a notch or two. First and foremost, the speakers are Element Ready. This means they can handle exposure to rain and prolonged UV without fear of damage. Each component in the speaker, from the high-performance coaxial tweeter and curvilinear polypropylene woofer cone to the motor components and basket, won’t fail even after thousands of hours of shocks and vibration.
The new speakers are based around a glass-fiber reinforced PA66 Nylon basket. This rigid and thermally stable design ensures motor geometry remains accurate. The carbon-impregnated woofer cone is attached to the basket using a Santoprene rubber surround that resists rot and UV degradation. The carbon doping in the cone enhances thermal stability and damping, resulting in tight bass and clear midrange performance. The new speakers have more excursion capability than their predecessors, with an Xmax specification of 4.5 millimeters in each direction.
Speaking of output, Rockford Fosgate implemented its Vertical Attach Surround Technique (VAST) geometry on the woofer surround. VAST dramatically increases the driver’s cone area, which translates to more bass and improved efficiency.
Dual neodymium motor magnets ensure excellent speaker efficiency without adding a lot of weight to your bike. An integrated motor cover inside the saddlebag ensures your belongings won’t be exposed to high temperatures after a long ride with the volume cranked. Speaking of high power, the 1.5-inch Kapton voice coil is larger than previous speakers to increase power handling 50% over the 1st generation TMS69 speakers. Likewise, the tinsel leads to the coil are braided and stitched to the surround for reliable operation.
Finally, the TMS24-69 speakers feature a concealed passive crossover network that Rockford Fosgate calls their Integrated Concealed Crossover (ICC). This design eliminates the need to mount oversized external components, simplifying the installation process while ensuring maximum performance. The 4 kHz crossovers feature a second-order 12 dB/octave slope to ensure smooth performance across the entire listening range.
Power handling on the TMS24-69 is rated at 150 watts continuous, with a maximum power rating of 300 watts. The speakers are 91.4 dB efficient when measured at a distance of 1 meter and fed with 1 watt of power. That’s impressive for a speaker that still delivers bass down to 50 Hz. As with all Rockford Fosgate transducers, the specifications they provide are compliant with the ANSI/CTA-2031 standards, so you know you can trust them.
Upgrade Your Harley-Davidson with Rockford Fosgate Today!
If you are looking to hear every word and note of your favorite music on your next ride, consider visiting a local authorized Rockford Fosgate retailer to learn more about the new HD24BL69 saddlebag speaker cut-in kit for 2024 and newer Harley-Davidson touring bikes. You can find an authorized retailer using the locator tool on their website.
