Crossover settings control which frequencies each speaker in your vehicle reproduces, and they play a major role in how clear, balanced and powerful your system sounds. When configured correctly, crossovers allow every speaker to focus on the frequencies it was designed to handle.
In any car audio system, different speakers serve different roles. Subwoofers are built to reproduce deep bass. Midrange drivers handle vocals and instruments. Tweeters reproduce high-frequency detail. If all those speakers try to play the full range of sound at once, the result is muddy bass, strained midrange and harsh highs.
What Is a Crossover in a Car Audio System?
A crossover is an electronic filter that divides the audio signal into specific frequency ranges before sending it to speakers. It determines which sounds a particular amplifier channel will allow to pass.
In many modern amplifiers, adjustable crossovers are built directly into the chassis. These controls allow a technician to define where bass stops and midrange begins, or where midrange transitions to treble. More advanced systems may also use a digital signal processor, but the core concept remains the same: direct the right frequencies to the right speakers.
How Crossovers Improve System Balance and Clarity
Crossover filters improve balance and clarity by ensuring each speaker only plays the frequencies it was engineered to reproduce. This targeted frequency management is what separates a system that sounds loud from one that sounds refined.
When deep bass is removed from smaller speakers, midrange and high-frequency detail becomes cleaner and more accurate. Vocals gain presence, instruments sound more natural and harshness is reduced. At the same time, allowing the subwoofer to focus exclusively on low frequencies produces tighter, more authoritative bass.
Without proper frequency division, speakers overlap too much in certain ranges and struggle in others. The result can be thin vocals, boomy bass or an aggressive top end. By defining clear frequency boundaries, crossovers create smoother transitions between speakers and a more cohesive soundstage.
This balance is especially important in a vehicle, where interior surfaces reflect sound unpredictably. Glass, leather and plastic panels can exaggerate certain frequencies. Proper crossover configuration helps control those effects and keeps the system sounding consistent from seat to seat.
Understanding High-Pass, Low-Pass and Full-Range Modes

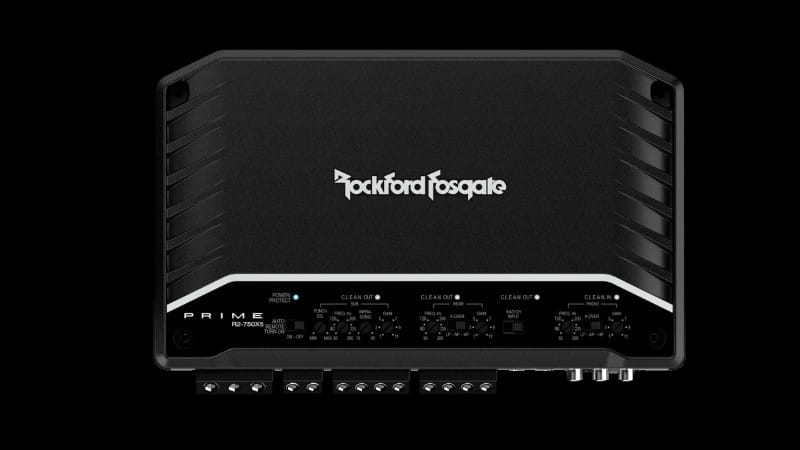

Caption: Built-in crossover controls, like those shown on this amplifier, allow a technician to define which frequencies each channel delivers, helping balance bass, midrange and treble for cleaner, more controlled sound.
Amplifier crossovers typically offer three basic modes:
- High-pass: Allows higher frequencies to pass while blocking deep bass from reaching smaller speakers
- Low-pass: Allows only bass frequencies to reach a subwoofer
- Full-range: Sends the entire audio spectrum through the amplifier channel
High-pass filters are commonly used for door speakers to improve clarity and reduce strain. Low-pass filters are used for subwoofers to keep vocals and higher notes out of the bass enclosure. Full-range mode is appropriate when an external processor or passive crossover is handling frequency division.
How Crossovers Protect Your Speakers
Proper crossover settings protect speakers by preventing them from reproducing frequencies outside their design limits. This protection reduces mechanical stress and thermal strain.
For example, asking a small 6.5-inch midrange speaker to reproduce deep bass requires excessive cone movement. That extra excursion increases distortion and can shorten the lifespan of the driver. By filtering out those low frequencies, the speaker operates more efficiently and sounds cleaner at higher listening levels.
Subwoofers benefit as well. Blocking midrange content prevents localization issues and keeps bass focused and authoritative. The result is tighter, more controlled low-frequency performance that supports the front stage instead of overpowering it.
Why Professional Tuning Makes a Difference
Crossover settings have a dramatic impact on system performance. Small adjustments can significantly change tonal balance, imaging and perceived output.
Professional retailers understand how amplifier crossovers interact with speaker design, enclosure characteristics and vehicle acoustics. When these elements are aligned properly, the system sounds integrated rather than pieced together.
If you want your audio upgrade to deliver clean vocals, defined bass and long-term reliability, work with a qualified specialty retailer. Use the Dealer Locator on BestCarAudio.com to find a trusted professional near you who can design and tune a system that performs the way it should.
