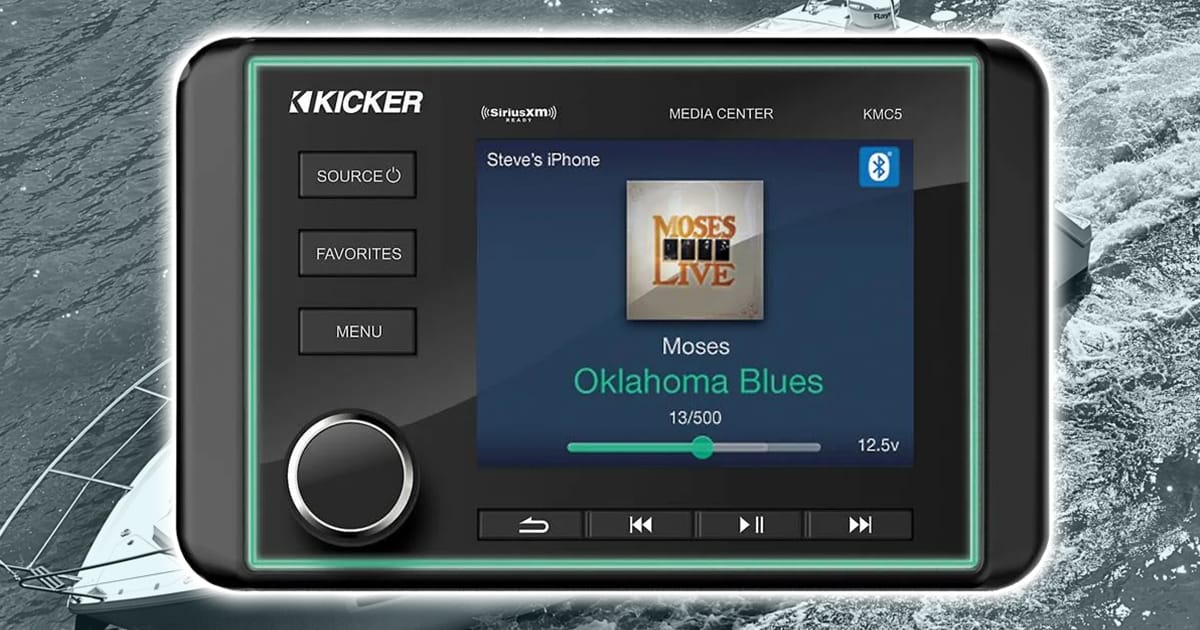

Going back a few decades, only a handful of car audio manufacturers offered marine-specific source unit options. These were often car radios with oversized front panels with waterproofing features. Now, there are dozens of companies that offer marine source units. One that stands out for its features and performance is the KICKER KMC5, which is the subject of this product spotlight. Let’s check it out!
Features of the KICKER KMC5

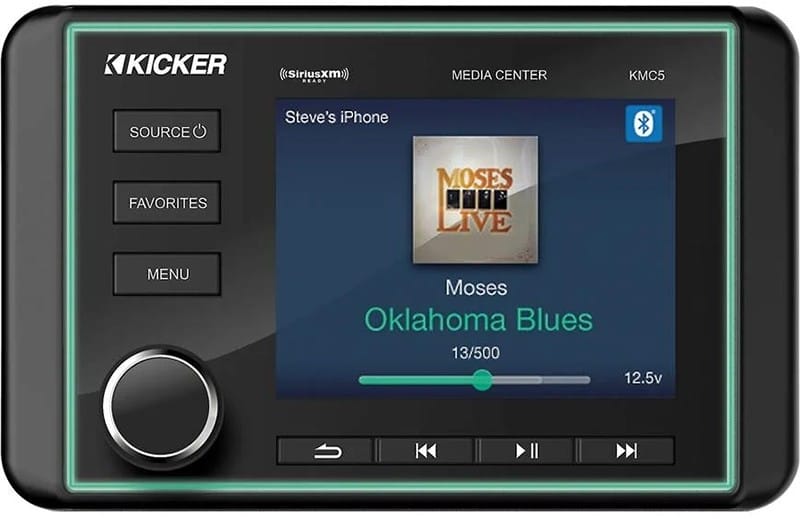

The KMC5 is a marine source unit with a face measuring 5.5 inches wide and 3.5 inches tall. The radio mounts through a three-inch hole, so it can replace a small round unit or a large gauge in an instrument cluster. If nothing else, drilling the mounting hole with a hole saw is much easier for your installer than cutting out a rectangle with an air saw. The radio needs about seven inches of clearance behind the mounting surface for the chassis and wire connections. The front panel is IP66 rated, so you don’t have to worry about rain or splashes causing issues. Of course, KICKER’s Real Marine rating means the radio is built with materials that won’t fade, chalk, crack, or corrode when exposed to the sun or saltwater.
The radio features a sunlight-viewable 3.5-inch full-color LCD screen that provides a clear view of what’s playing from a USB thumb drive, SiriusXM satellite radio, or the built-in AM/FM tuner. USB support is compatible with FAT32-formatted thumb drives, and media formats include MP2, MP3, WMA, WAV16, FLAC, AAC, ALAC, and M4A. You can also stream music or a service like Pandora, iHeartRadio, Spotify, or Apple Music over the Bluetooth A2DP connection. The radio includes Bluetooth AVRCP so you can control your smartphone or media player from the source unit.
While we are on the topic of audio sources, it’s worth noting that the KMC5 includes a Weatherband tuner and an auxiliary input. You can use the input with something like a TV, DVD player or media player if you have a larger boat. Speaking of video, the KMC5 has a video input that can be used with an optional backup camera. There’s an external trigger included, so the rear camera can be activated with a switch at the helm. This would be a great option for backing a boat into a narrow slip at the marina.
If you’ve looked closely at the buttons on the face, then you might have seen the Favorite option. This is a quick-access button to whatever source, radio station or weather information channel you want.
System Features and Specifications

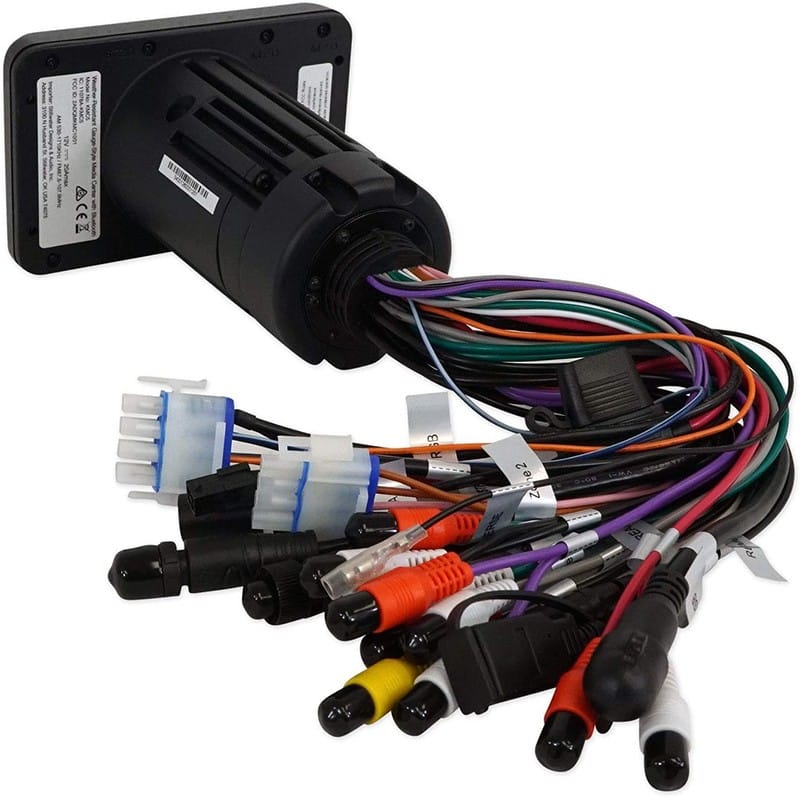

Moving on from source options, we should discuss the outputs from the radio. The KMC5 includes six channels of amplification, each rated to deliver 25 watts into a 4-ohm load and 40 watts into a 2-ohm load. You’ll notice the power wire on the amp harness is larger than the typical 14- or 16-gauge conductor you’d find on a 22-watt x 4 radio. Your installer may need to run a dedicated 10-AWG cable for power and ground to the fuse panel at your point. Hey, if you want an amp, even one in a source unit, to produce power, you need to feed it power properly.
On the preamp side, the radio includes stereo front and rear outputs, a pair of subwoofer outputs and a 2-zone RCA output. The fifth and sixth speaker output connections are assigned to the second audio zone output. So, you could power speakers beside the TV, in the galley or a berth. If you are using the preamp outputs with a separate amplifier, the second audio zone might be ideal for a set of wakeboard tower speakers. This system design would give you separate control of the zone-2 volume. In fact, you can rename this separate zone to Tower, Transom, Cockpit, or Interior in the setup menu. You can also configure the Zone-2 volume to track the main volume or be adjustable on its own.
Audio Features
The KICKER KMC5 includes an adjustable high-pass crossover for the front and rear speaker and preamp outputs. The filter can be set to 50, 80, or 120 hertz to suit the size of the speakers in the system. The radio has two tone-control options. It has conventional bass, midrange and treble adjustability, or it can be switched to Custom EQ mode. The Custom EQ includes Rock, Pop, Jazz and custom options. In the custom menu, you can boost or cut audio at 50, 125, 250, 500, 1k, 3k, and 8k Hz center frequencies to fine-tune the system.
You can expand the KICKER KMC5 with the two-inch KRC12 remote or the KRC55 Digital remote. The KRC55 includes a color display that replicates what’s shown on the main radio screen.
Upgrade Your Boat with the KICKER KMC5 Today!
If you are in the market for a full-featured multimedia radio for your boat, or even a side-by-side or UTV, then drop by a local authorized KICKER retailer today and ask about the KMC5 radio. You can find a KICKER dealer near you by using the locator tool on their website.
